Description

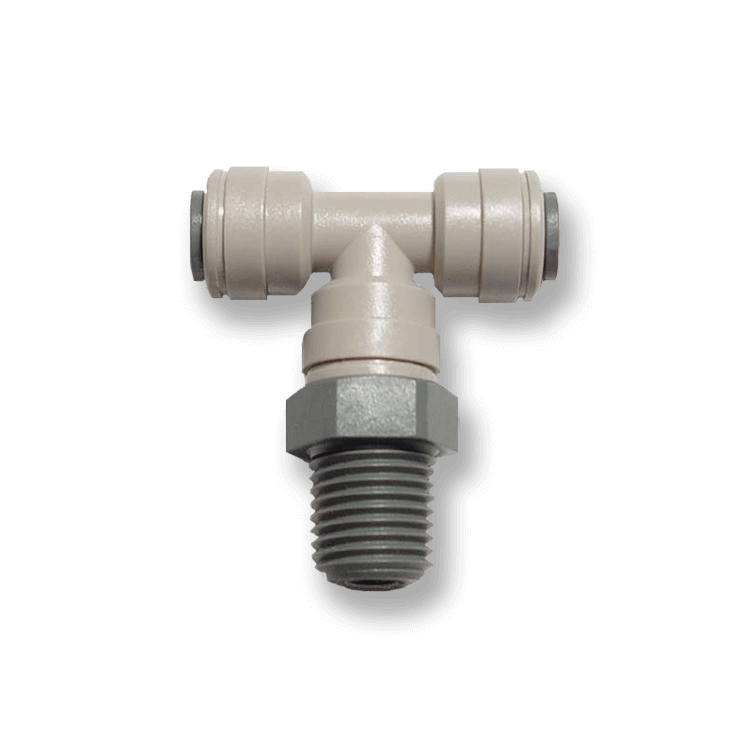

PMT Series Push-to-Connect Tee to Male NPT connectors are available in Acetal and select sizes in Polypropylene, and Kynar®. Push-to-Connect sizes range from 5/32 inch to 1/2 inch and Threads range from 1/2 inch MNPT to 1/8 inch MNPT. This swivel tee configuration uses the PT Series and PSM Series fittings. Gray or White Acetal are NSF and FDA-approved and have Buna seals for air, gases, and potable water applications. White Polypropylene with EPDM seals or PVDF with FKM seals. Maximum temperature 140°F at 60 psi for Polypropylene.
SKU | Description |
---|---|
PMT-2M3-GA | 1/8 inch Male NPT by 3/16 inch OD Gray Acetal Tee Push-in |
PMT-2M3-WA | 1/8 inch Male NPT by 3/16 inch OD White Acetal Tee Push-in |
PMT-2M4-GA | 1/8 inch Male NPT by 1/4 inch OD Gray Acetal Tee Push-in |
PMT-2M4-K | 1/8 inch Male NPT by 1/4 inch OD PVDF Tee Push-in |
PMT-2M4-WA | 1/8 inch Male NPT by 1/4 inch OD White Acetal Tee Push-in |
PMT-2M532-GA | 1/8 inch Male NPT by 5/32 inch OD Gray Acetal Tee Push-in |
PMT-2M532-WA | 1/8 inch Male NPT by 5/32 inch OD White Acetal Tee Push-in |
PMT-2M5-GA | 1/8 inch Male NPT by 5/16 inch OD Gray Acetal Tee Push-in |
PMT-2M5-WA | 1/8 inch Male NPT by 5/16 inch OD White Acetal Tee Push-in |
PMT-2M6-GA | 1/8 inch Male NPT by 3/8 inch OD Gray Acetal Tee Push-in |
PMT-2M6-K | 1/8 inch Male NPT by 3/8 inch OD PVDF Tee Push-in |
PMT-2M6-WA | 1/8 inch Male NPT by 3/8 inch OD White Acetal Tee Push-in |
PMT-4M4-GA | 1/4 inch Male NPT by 1/4 inch OD Gray Acetal Tee Push-in |
PMT-4M4-K | 1/4 inch Male NPT by 1/4 inch OD PVDF Tee Push-in |
PMT-4M4-WA | 1/4 inch Male NPT by 1/4 inch OD White Acetal Tee Push-in |
PMT-4M532-GA | 1/4 inch Male NPT by 5/32 inch OD Gray Acetal Tee Push-in |
PMT-4M532-WA | 1/4 inch Male NPT by 5/32 inch OD White Acetal Tee Push-in |
PMT-4M5-GA | 1/4 inch Male NPT by 5/16 inch OD Gray Acetal Tee Push-in |
PMT-4M5-WA | 1/4 inch Male NPT by 5/16 inch OD White Acetal Tee Push-in |
PMT-4M6-GA | 1/4 inch Male NPT by 3/8 inch OD Gray Acetal Tee Push-in |
PMT-4M6-K | 1/4 inch Male NPT by 3/8 inch OD PVDF Tee Push-in |
PMT-4M6-PP | 1/4 inch Male NPT by 3/8 inch OD Polypropylene Tee Push-in |
PMT-4M6-WA | 1/4 inch Male NPT by 3/8 inch OD White Acetal Tee Push-in |
PMT-4M8-GA | 1/4 inch Male NPT by 1/2 inch OD Gray Acetal Tee Push-in |
PMT-4M8-PP | 1/4 inch Male NPT by 1/2 inch OD Polypropylene Tee Push-in |
PMT-4M8-WA | 1/4 inch Male NPT by 1/2 inch OD White Acetal Tee Push-in |
PMT-6M5-GA | 3/8 inch Male NPT by 5/16 inch OD Gray Acetal Tee Push-in |
PMT-6M5-PP | 3/8 inch Male NPT by 5/16 inch OD Polypropylene Tee Push-in |
PMT-6M5-WA | 3/8 inch Male NPT by 5/16 inch OD White Acetal Tee Push-in |
PMT-6M6-GA | 3/8 inch Male NPT by 3/8 inch OD Gray Acetal Tee Push-in |
PMT-6M6-K | 3/8 inch Male NPT by 3/8 inch OD PVDF Tee Push-in |
PMT-6M6-PP | 3/8 inch Male NPT by 3/8 inch OD Polypropylene Tee Push-in |
PMT-6M6-WA | 3/8 inch Male NPT by 3/8 inch OD White Acetal Tee Push-in |
PMT-6M8-GA | 3/8 inch Male NPT by 1/2 inch OD Gray Acetal Tee Push-in |
PMT-6M8-WA | 3/8 inch Male NPT by 1/2 inch OD White Acetal Tee Push-in |
PMT-8M8-GA | 1/2 inch Male NPT by 1/2 inch OD Gray Acetal Tee Push-in |
PMT-8M8-PP | 1/2 inch Male NPT by 1/2 inch OD Polypropylene Tee Push-in |
PMT-8M8-WA | 1/2 inch Male NPT by 1/2 inch OD White Acetal Tee Push-in |
